Style and Comfort are the hallmarks of AY-215A2. While maintaining style, the AY-215A2 also maintains comfort. Ergonomic design of the new fourth generation chair frame, as far as possible to ensure the comfort of patients during treatment. The perfect operating system makes dentists and patients to have a good treatment experience.
Product Details:
Detachable Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.
Instrument Tray
Instrument Tray
-With Electric dental chair control system
-With 14 control buttons
-3 memories
-One button preset working position which greatly improves the dentist's work efficiency.

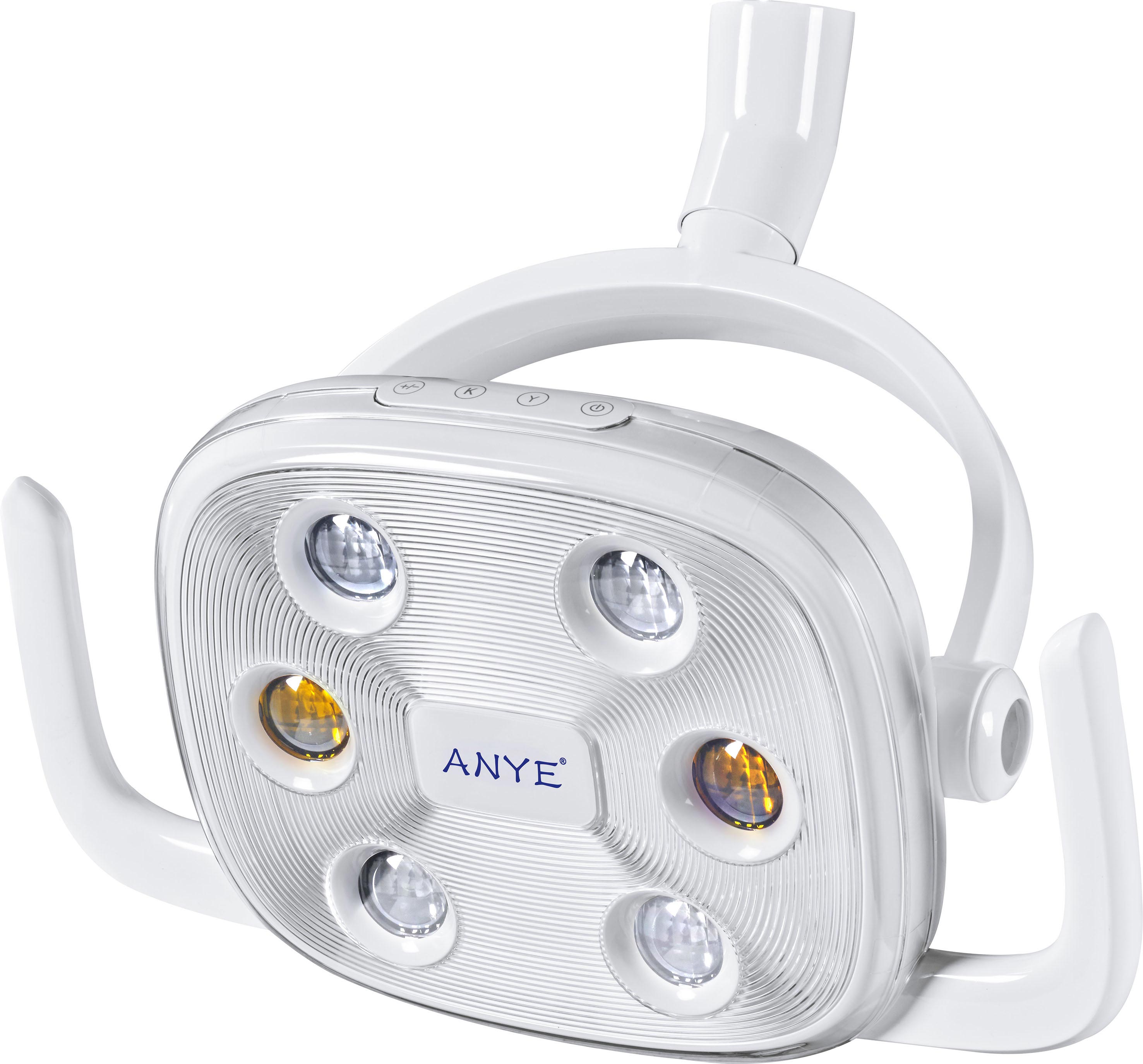

White and Yellow Light LED Operating Lamp
Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from ＜8,000 to ＞30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%
Adjustable Comfort Headrest
The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.
Flushing and Water Supply
The water supply nozzle is 2cm higher than the surface of the spittoon cylinder to avoid cross infection caused by water splashing to the water supply nozzle during sputum flushing.
Dentist Stool C
With 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the hips and waist.

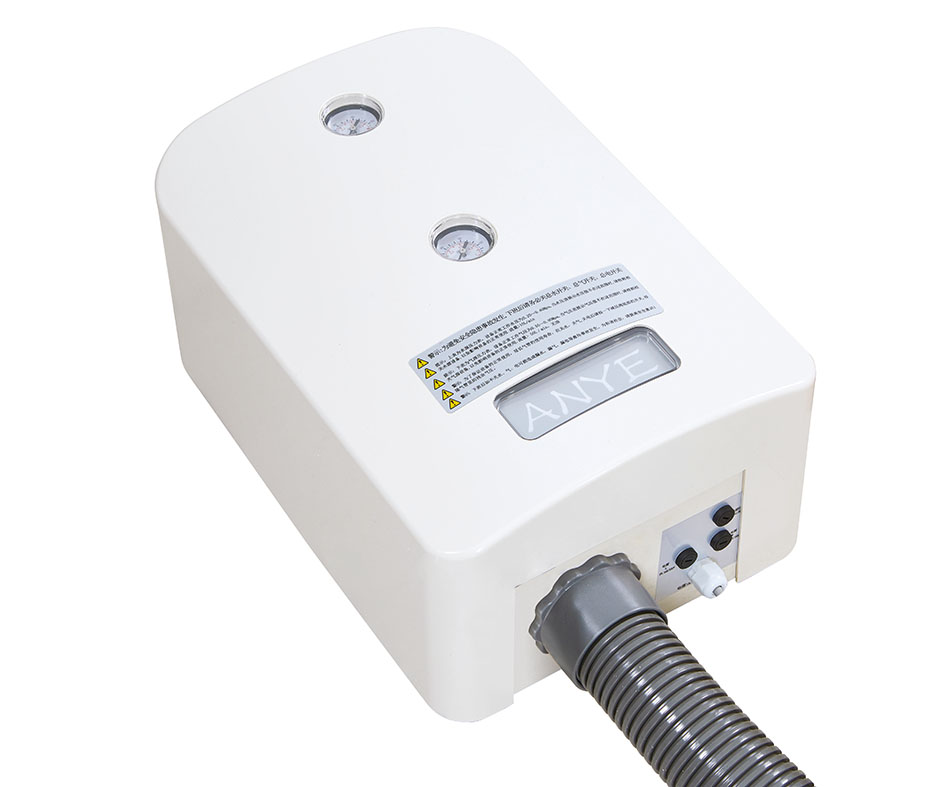

Junction Box
Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.
Multifunctional Foot Pedal
The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply.
Water Storage Bottle
1.5L large capacity water storage bottle, transparent material, water storage is obvious.
Rotatable Side Box
The side can be rotated 45°, and the moving range is wide, so it is easy to locate the position needed by the assistant.
Aluminum Cabinet
High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.
Cast Aluminum Lamp Holder
Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).
Microfiber Leather
Made of extremely abrasion-resistant fiber leather, it's softness and breathability. The cushion is filled with highly elastic foam to keep the patient in a comfortable and relaxed state.
4mm High Quality Steel Is Cut By Laser Cutting Machine
All ABS Plastic By Injection Moulding
Import Medical Water & Air Tube
Import Member And Valve
Import Motor
Import Pressure Reducing Valve
Import Solenoid Valve
Power Supply With Protection System
Self-designed PCB System, Import Chip

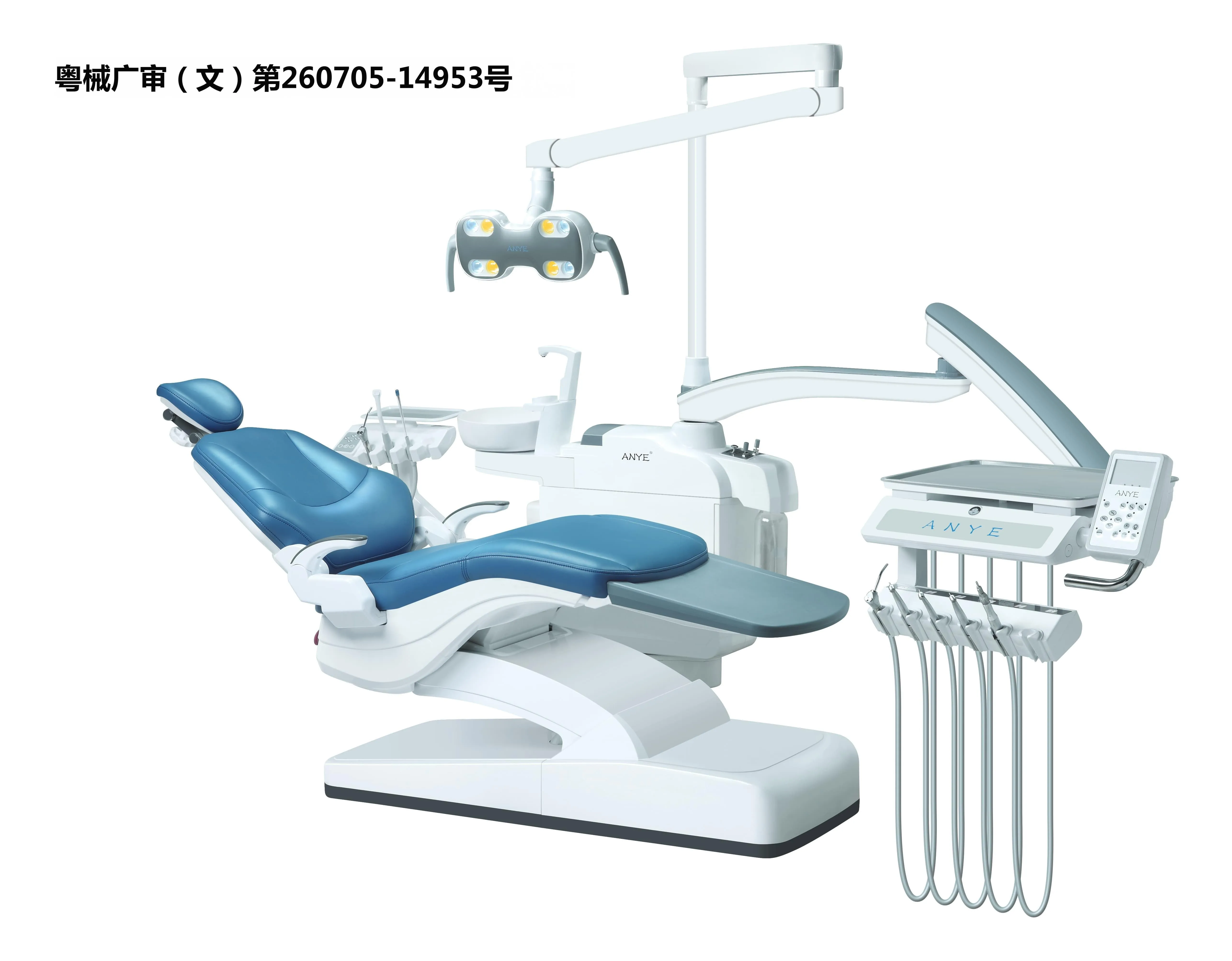

The Portable Dental Unit with Air Compressor AY-215A2 is a high-end professional dental unit designed with comfort and technology in mind. Manufactured by ANYE Medical, this product is designed to meet the clinical professional needs of medical staff while providing patients with a wide and comfortable seat.
Key Features
-
Technical Parameters: The unit operates at a power voltage of 220V-50HZ/60HZ and a motor voltage of 24V. It maintains an air pressure of 0.5MPa-0.8MPa and a water pressure of 0.2MPa-0.4MPa.
-
LED Light: The unit is equipped with an LED light that has a maximum power of 25VA. The light source consists of 4 white and 4 yellow light-emitting diodes (LED). The illuminance is adjustable from ＜8,000 to ＞30,000, and the color temperature ranges from 5,000K - 5,700K.
-
Configuration: The AY-215A2 comes with a 24V DC Motor, a down-mounted instrument tray, a 3-way syringe (assistant) cold/hot water, an assistant operating control system, a water heater system, strong and weak suction tubes, an air brake instrument tray, an emergency switch (on/off), an auto spittoon flush and cup filler control system, a detachable 90° movable spittoon, a chair with self-lock function, a multifunctional foot pedal, a keypress function for spitting, a control box with main switch (water/electric/air), a reflective LED operating light (white/yellow), 3 memories, a dentist stool C, a movable cabinet, a ceramic spittoon, a synchronized, the latest generation integral chair frame system, a cast aluminum cabinet, and a water one-way valve (anti-backflow function).
Benefits of the Portable Dental Unit with Air Compressor AY-215A2
-
Comfort: The unit is designed with a large and comfortable backrest, ensuring the comfort of lying down for a long time. The movable side box design makes the operation space more large.
-
Efficiency: The unit comes with an electric dental chair control system with 14 control buttons and 3 memories. This one-button preset working position greatly improves the dentist's work efficiency.
-
Safety: The unit has an enclosed power design, according to European safety standards, which is moisture-proof, dustproof, and prevents electromagnetic interference. This improves the stability and durability of the power.
-
Versatility: The side can be rotated 45°, and the moving range is wide, so it is easy to locate the position needed by the assistant.
-
Durability: The unit is made of high-strength integral molding, integral casting aluminum, which is rust-proof, high hardness, durable, and not easy to deform.
Conclusion
The Portable Dental Unit with Air Compressor AY-215A2 is a high-quality dental unit that offers a combination of comfort, efficiency, safety, versatility, and durability. Whether you're a dental professional looking for a reliable unit for your practice or a student in need of a portable unit for your studies, the AY-215A2 is a worthy investment.
Technical Parameters:
| Power Voltage | 220V-50HZ/60HZ |
| Motor Voltage | 24V |
| Air Pressure | 0.5MPa-0.8MPa |
| Water Pressure | 0.2MPa-0.4MPa |
LED Light:
| Rated input voltage | AC 24V±10% |
| Maximum power | 25VA |
| Light Source | 4 white light-emitting diodes (LED) and 4 yellow light-emitting diodes (LED) |
| Color Temperature | 5,000K - 5,700K |
| Illuminance | Adjustable from ＜8,000 to ＞30,000 |
Configutation:
|
Positive pressure automatic drainage system |
|
One-button water, gas and electricity switch system |
|
Luxury LED oral dual-color lamp (manual/induction) |
|
Microfiber environmentally friendly leather |
|
Fourth-generation compensation linkage chair frame |
|
Touch-type emergency stop safety switch system |
|
Main position instrument tray pad |
|
Advanced adjustable protective headrest |
|
Luxury multi-function foot control (washing bowl/water supply) |
|
LED 24V x-ray viewer |
|
24V silent DC motor |
|
Four-hole high-speed handpiece |
|
Four-hole low-speed handpiece |
|
3-way syringe (cold\hot) |
|
Under-hung adjustable instrument tray |
|
With 3 chair positions that can be set by yourself |
|
Cast aluminum cabinet |
|
90-degree rotating spittoon (anti-fall) |
|
Automatic system for quantitative constant temperature water supply for gargling |
|
Strong and weak saliva suction system (with filter) |
|
Assistant control system |
|
External floor box (or built-in floor box) |
|
Luxury Dentist Stool C (six-way adjustment) |
Why Choose Adjustable Planting Dental Chair?
The adjustable planting dental chair is a revolution in dental comfort and patient care. Crafted with precision and innovation, our Adjustable Planting Dental Chair redefines the standards of ergonomic design and patient relaxation. Imagine a chair that seamlessly combines the soothing comfort of a plush recliner with the precision and functionality of a cutting-edge dental unit.
Engineered with a large and luxuriously comfortable backrest, this chair is meticulously designed to ensure extended periods of relaxation without compromising on support. The movable side box design creates a spacious operational area, enhancing efficiency without sacrificing comfort.
At its core, the AY-215A2 is a masterpiece of fourth-generation dental technology, meticulously tailored to meet the exacting demands of dental professionals. Its adaptive design aligns effortlessly with the contours of the human body, automatically adjusting to provide an optimal elevation angle and fostering a sense of unparalleled back support.
What truly sets this chair apart is its commitment to patient well-being. With a wide and inviting seat, it prioritizes patient comfort, creating an environment where individuals feel at ease throughout their dental experience. The ergonomic streamline design isn't just about aesthetics; it's a promise of a more relaxed and comfortable visit for every patient.
From its intuitive movements that synchronize with cushion adjustments to its thoughtful and intimate design elements, the AY-215A2 isn't just a chair; it's a sanctuary of comfort for both patients and dental professionals alike. Discover a new level of dental care that merges innovation, technology, and unwavering comfort in every detail with our Adjustable Planting Dental Chair.
Opitons
8 Beads LED Operating Light(White&Yellow)
6 Beads LED Operating Light (White&Yellow)
12-hole Implant Operating Light(White&Yellow)
Dentist Stool C
Dentist stool A
Luxury Top-mounted instrument tray
Top-mounted instrument tray
Luxury cast aluminum multifunctional pedal
Cast aluminum multifunctional pedal
Cast aluminum pedal
Monitor holder
Curing Light
Curing Light
Scaler
Colors Available:
