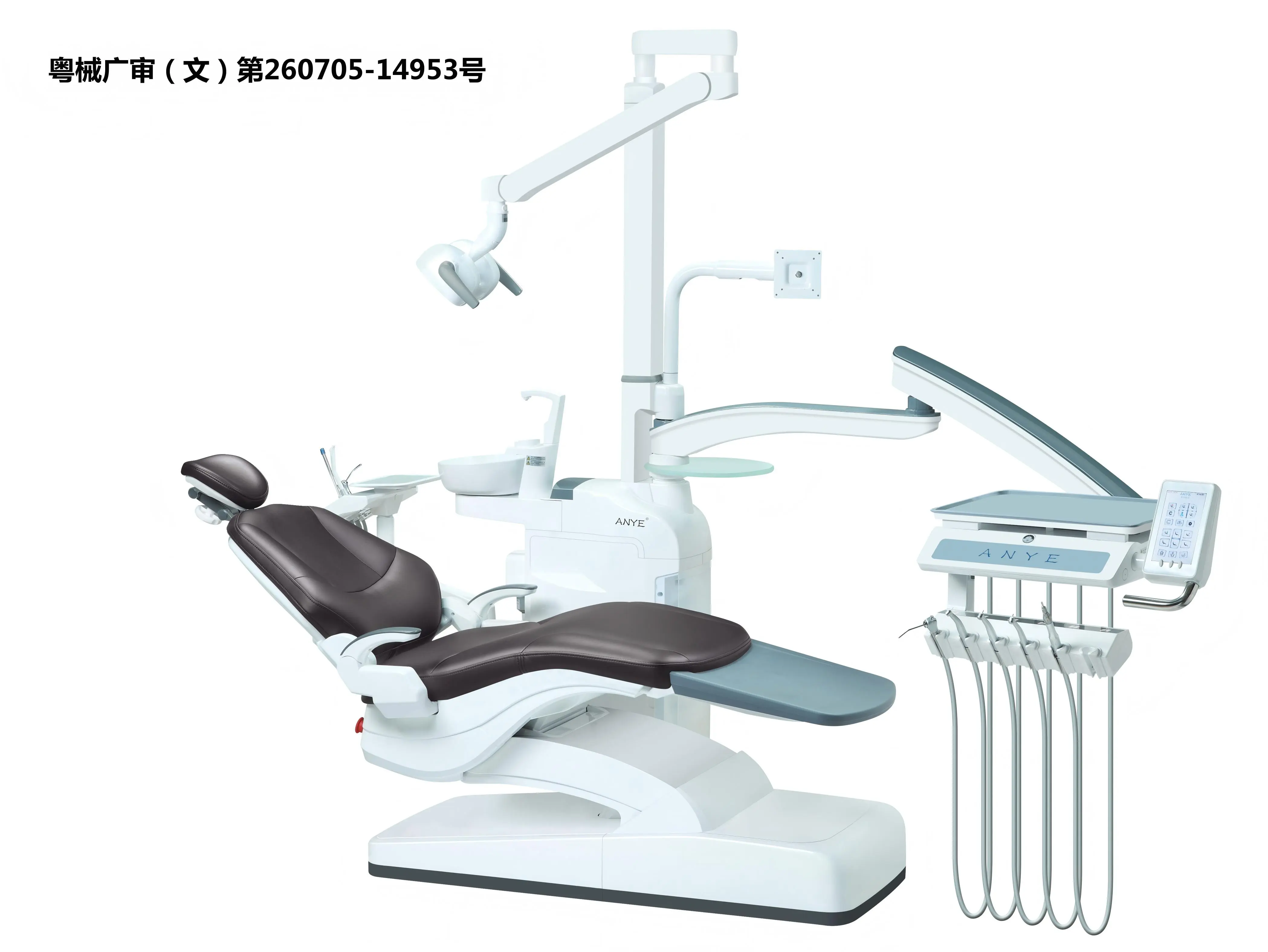

Dental Unit AY-215A5



Elegance and intelligence are the special adjectives for AY-215A5. Equipped with a brand-new fourth-generation chair frame, its streamlined chair is more comfortable. The water purification bottle is convenient for controlling water quality, and the detachable and rotatable spittoon is more convenient for postoperative cleaning.AY-215A5, comfortable and practical design.



Purchase parts:


Detachable Spittoon

---

The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.











Touch Screen Control of instrument tray

---

-With Electric dental chair control system
-With 14 control buttons
-9 memories
-One button preset working position which greatly improves the dentist's work efficiency.

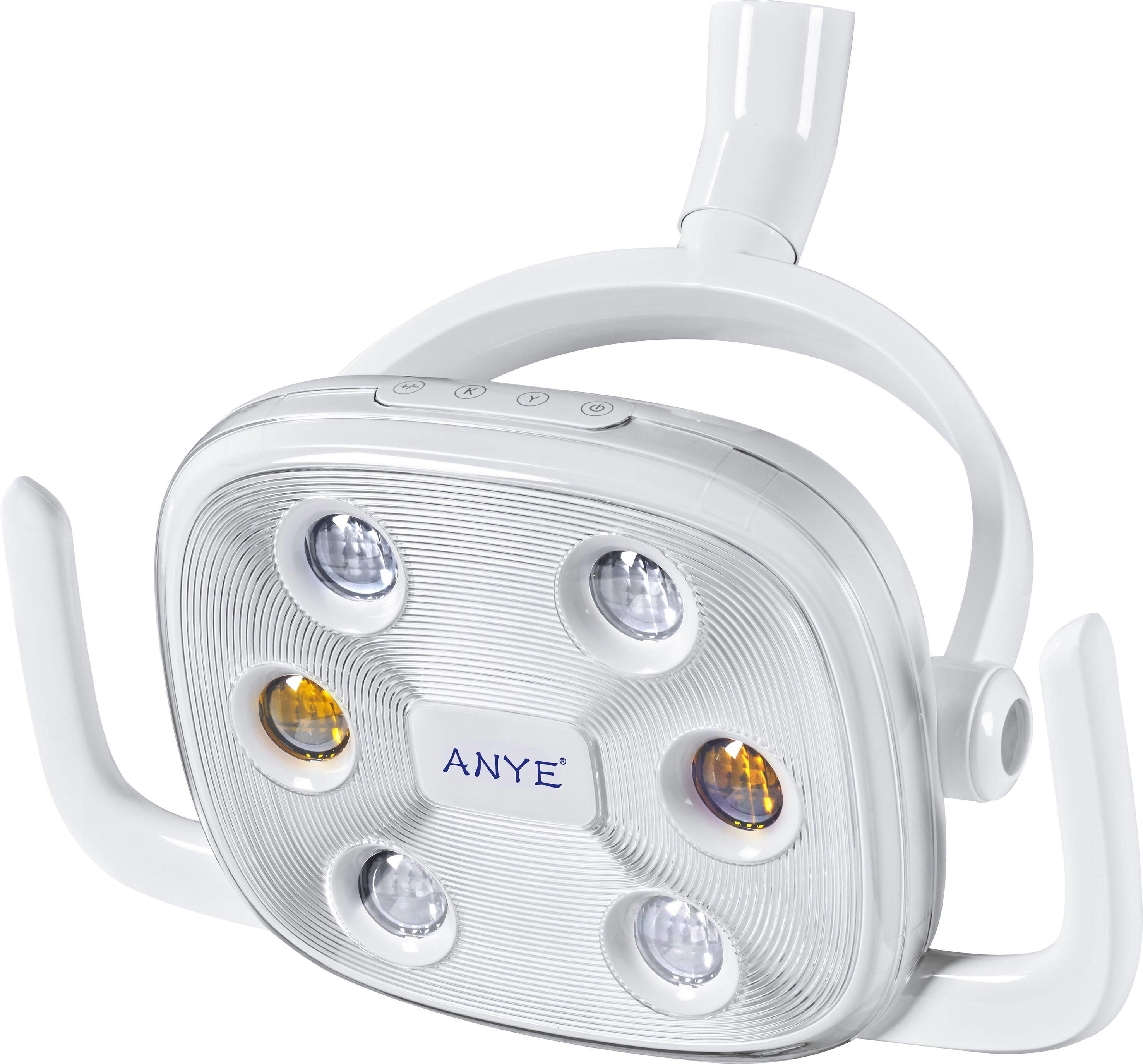

White And Yellow Light LED Operating Lamp

---

Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from  ＜8,000 to ＞30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%













Adjustable Comfort Headrest

---

The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.





Flushing and Water Supply

---

The water supply nozzle is 2cm higher than the surface of the spittoon cylinder to avoid cross infection caused by water splashing to the water supply nozzle during sputum flushing.



Dentist Stool C

---

With 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the hips and waist.







Water Storage Bottle

---

1.5L large capacity water storage bottle, transparent material, water storage is obvious









Foot Pad

---

The foot pad is made of die-casting, it’s easy to clear. Patients do not need to take off their shoes for treatment.

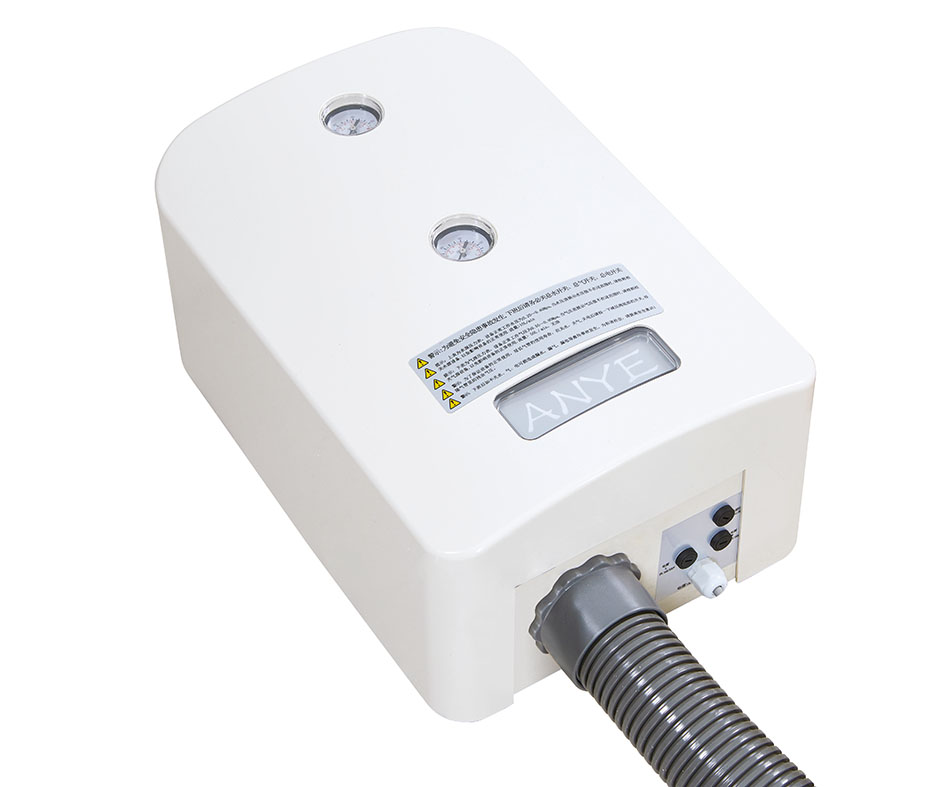

Junction Box

---

Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
It’s with main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.











Multifunctional Foot Pedal

---

The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.









Cast Aluminum Lamp Holder

---

Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).






Plate For Storage

---

Rotatable tray, can store keys, mobile phones, mirrors, tissues and other items



LCD Touch Control Panel

---

Digital LCD display touch control panel, intelligent touch control, easy and convenient.







Deputy Silicone Pad

---

Protect the surface of the instrument tray to prevent scratches caused by collision, maintain sanitation and facilitate cleaning.









Key parts:


4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic By Injection Moulding

Import Medical Water & Air Tube

Import Member And Valve

Import Motor

Import Pressure Reducing Valve

Import Solenoid Valve

Power Supply With Protection System

Self-designed PCB System, Import Chip

Welcome to the world of advanced dentistry equipment, where comfort meets technology. We are proud to introduce the Fourth-Generation High-End Professional Dental Unit AY-215A5, a product of ANYE Medical. This dental unit is designed to meet the clinical professional needs of medical staff while providing patients with wide and comfortable seats.

A New Generation of Dental Units

The AY-215A5 is a fourth-generation high-end professional dental unit. It's a product that's designed with both comfort and technology in mind. This dental unit is designed to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It's in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215A5 can bring more comfort to patients.

Key Features and Benefits

The AY-215A5 is packed with features that make it stand out from other dental units on the market. Here are some of the key features and benefits:

• Detachable Spittoon: The spittoon is detachable for easy cleaning and can be rotated by 90° for patients to spit.
• Touch Screen Control of Instrument Tray: With an electric dental chair control system, 14 control buttons, and 9 memories, this feature greatly improves the dentist's work efficiency.
• White and Yellow Light LED Operating Lamp: This lamp features a Philips LED light source with 4 white light-emitting diodes (LED) and 4 yellow light-emitting diodes (LED). The illuminance is adjustable from ＜8,000 to ＞30,000, with a color temperature selection of 5000k±10%.
• Adjustable Comfort Headrest: The adjustable curved headrest is more comfortable than traditional flat headrests. It prevents the head from shaking and can be adjusted from multiple angles.
• Dentist Stool C: This stool comes with a 360° mute universal wheel which is flexible to move, cushion lifting, and backrest pitching. It provides the dentist with good support for the hips and waist.
• Multifunctional Foot Pedal: The pedals have a self-lock function and are equipped with controls for rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off, and handpiece control.

Technical Parameters

The AY-215A5 comes with a range of technical parameters that ensure its performance and reliability:

• Power Voltage: 220V-50HZ/60HZ
• Motor Voltage: 24V
• Air Pressure: 0.5MPa-0.8MPa
• Water Pressure: 0.2MPa-0.4MPa

LED Light Specifications

The LED light on the AY-215A5 has the following specifications:

• Rated input voltage: AC 24V±10%
• Maximum power: 25VA
• Light Source: 4 white light-emitting diodes (LED) and 4 yellow light-emitting diodes (LED)
• Color Temperature: 5,000K - 5,700K
• Illuminance: Adjustable from ＜8,000 to ＞30,000

Configuration

The AY-215A5 comes with a range of configurations that make it a versatile and reliable piece of equipment:

• 24V DC Motor
• Down Mounted Instrument Tray
• 3-Way Syringe(Assistant)Cold/Hot Water
• Assistant Operating Control System
• Water Heater System
• Strong Suction Tube
• Weak Suction Tube
• Air Brake Instrument Tray
• Emergency Switch(On/Off)
• Auto Spittoon Flush And Cup Filler Control System
• Detachable 90° Moveble Spittoon
• Chair With Self-lock Function
• Multifuncitonal Foot Pedal
• Keypress Function For Spitting
• Control Box With Main Switch(Water/Electric/Air)
• 8 Eyes LED Operating Light
• 8 Inch Lcd Display Touch Screen
• 9 Memories
• Dentist stool C
• Glass Plate
• Ceremic Spitton
• Synchronized
• The Latest Generation Integral Chair Frame System
• Environment Leather
• Water One-way Valve(Anti-backflow Function)

High-Quality Dental Equipment

When it comes to dental equipment, quality is paramount. The AY-215A5 is made with high-quality steel cut by a laser cutting machine. All ABS plastic is made by injection moulding. The unit also features imported medical water and air tubes, an imported motor, imported pressure reducing valve, and imported solenoid valve. The power supply comes with a protection system, and the self-designed PCB system features an imported chip.

A Dec 300 Dental Chair

The AY-215A5 is a top-of-the-line dental chair, similar to the A Dec 300 dental chair. It's designed with the comfort of both the dentist and the patient in mind. The chair features a self-lock function, a multifunctional foot pedal, and an adjustable comfort headrest.

Dental Chair Accessories

The AY-215A5 comes with a range of accessories that enhance its functionality. These include a detachable spittoon, a touch screen control of the instrument tray, a white and yellow light LED operating lamp, an adjustable comfort headrest, a dentist stool, a water storage bottle, a foot pad, a junction box, a multifunctional foot pedal, a cast aluminum lamp holder, a shelf tray, an LCD touch control panel, and a deputy silicone pad.

Conclusion

The Fourth-Generation High-End Professional Dental Unit AY-215A5 is a top-quality piece of dental equipment that combines comfort and technology. It's designed to meet the clinical professional needs of medical staff and provide patients with a comfortable and relaxing experience. With its range of features and high-quality construction, the AY-215A5 is a reliable and versatile choice for any dental practice.

For more information about the AY-215A5 and other dental units, visit ANYE Medical. You can also learn more about the parts of a dental unit, how to choose a dental chair, and why maintenance of dental chair is a must.
