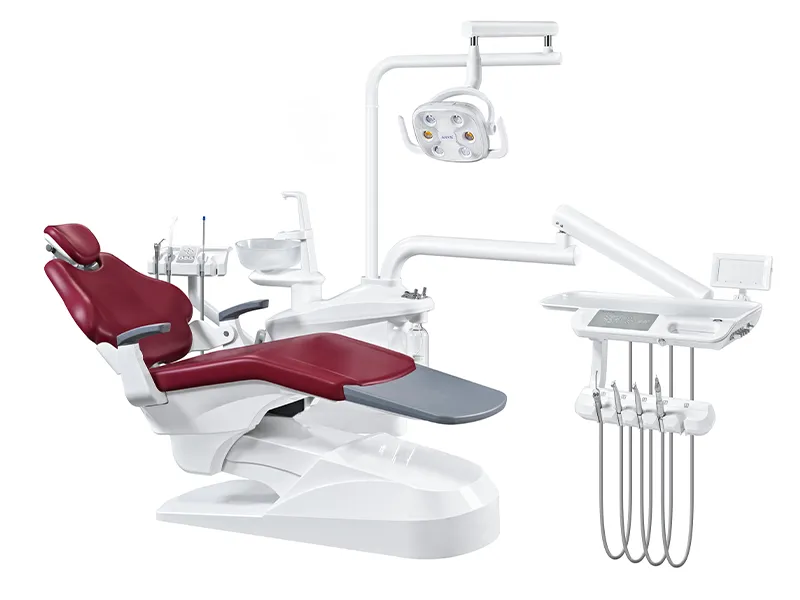

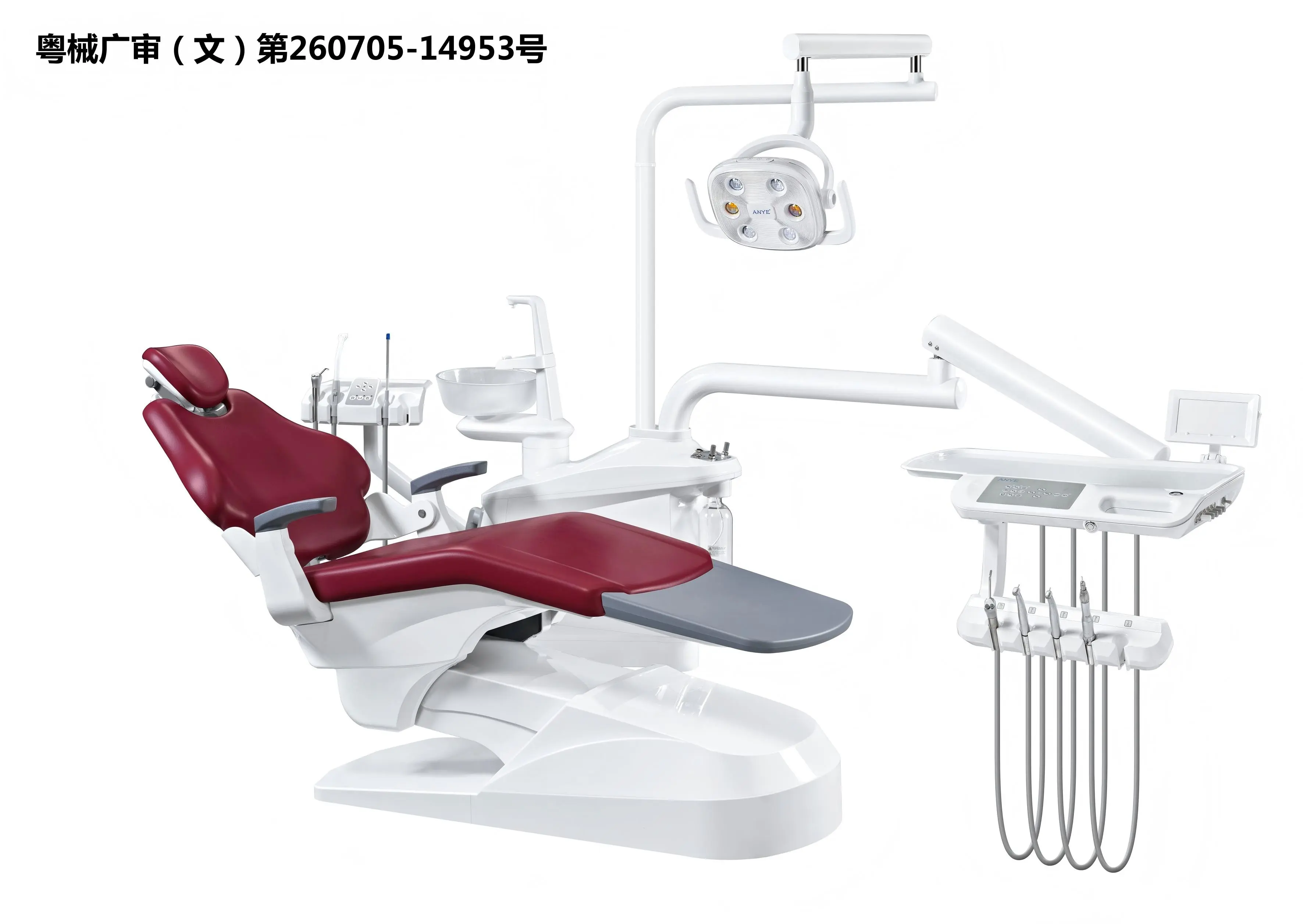

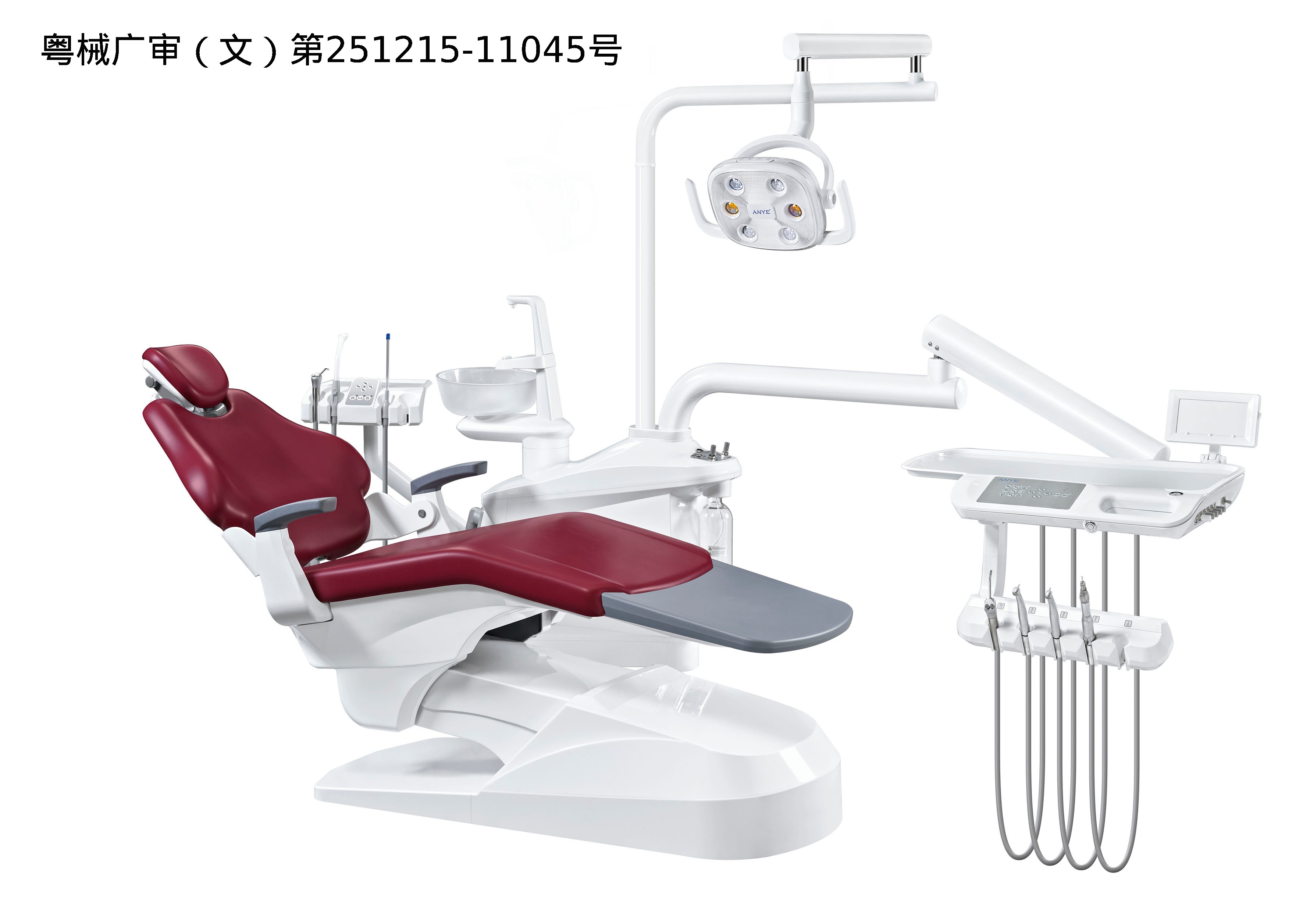

Dental Unit AY-215C1
AY-215C1 is made of a high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215C1 can bring more comfort to patients.
CONCEPT OF FASHION DESIGN
AY-215C1 reflects the unique cleanliness,concise andstylish desing,which meets the clinic atmosphere andadored by medical staff.
Purchase parts:
Adjustable Comfort Headrest
The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.
Detachable Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.
Built-in Tissue Box
There is no need to add a tissue box in the side box. The tissue box is located next to the left armrest which is convenient for patients to take out and wipe after spitting.
Rotatable Armrest
The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.

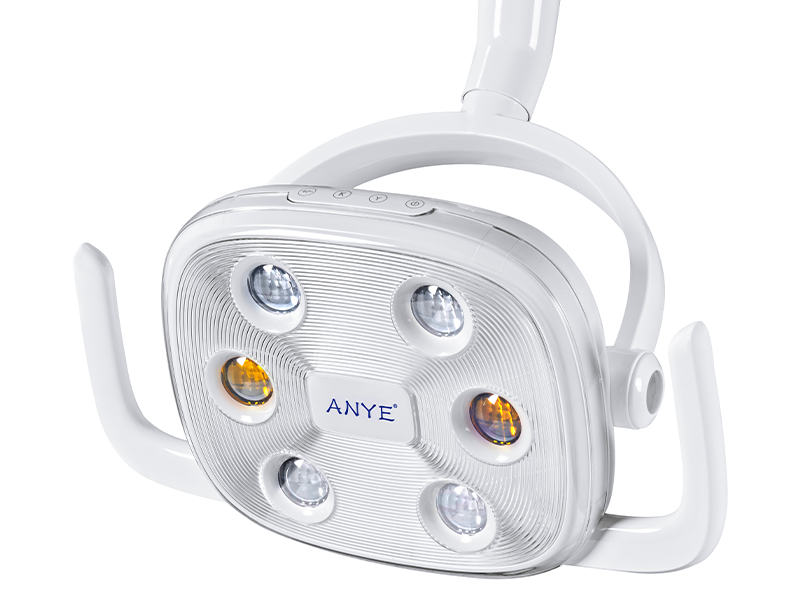

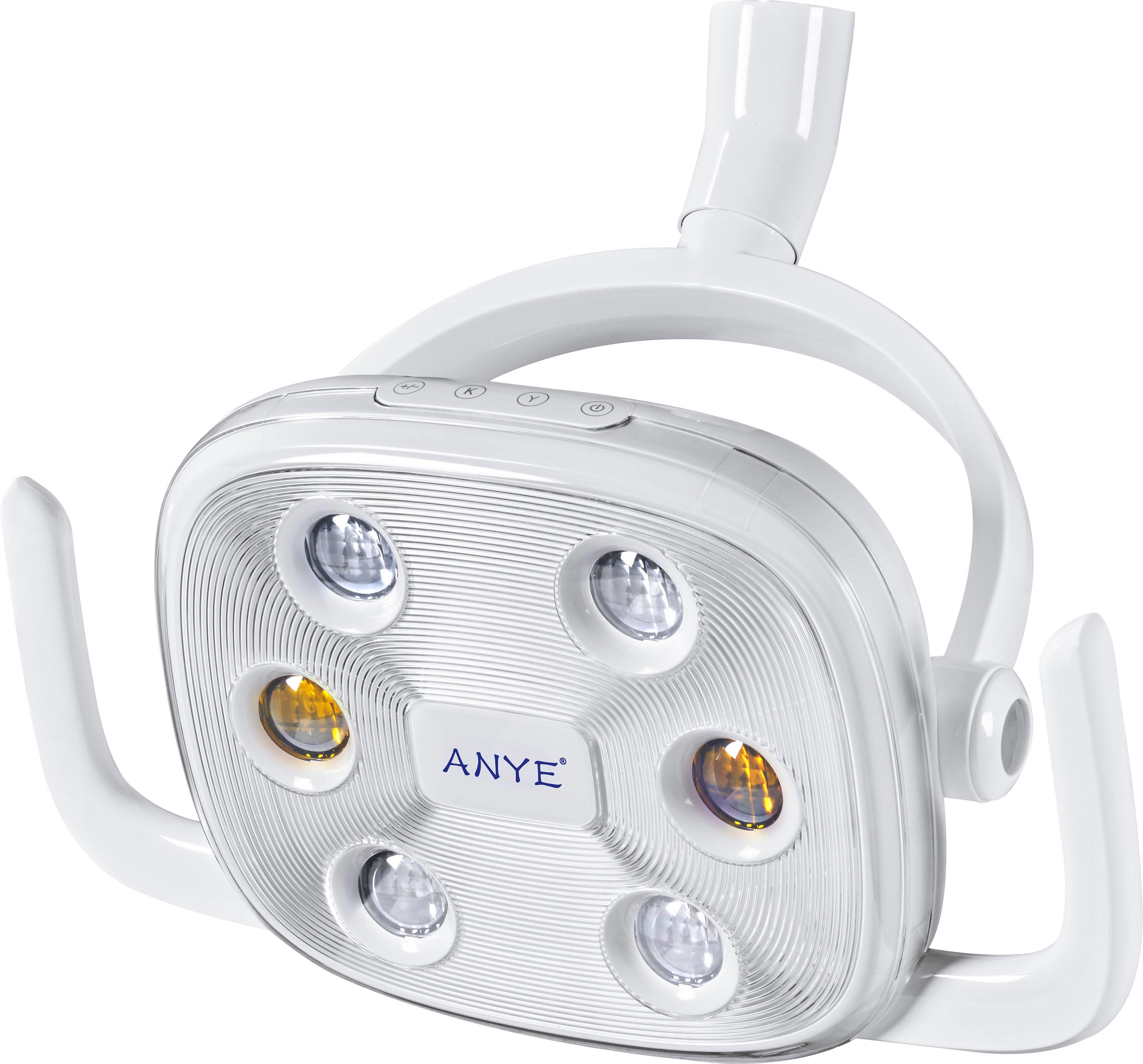

White and yellow light LED lamp
Sensor and manual are available. Color temperature of 5.000k±10% reflected light is more uniform, light source adopts a mixture of yellow and white which is closer to natural light. It is recommended to use yellow light for resin filling to prevent the resin from curing prematurely.
Instrument Tray
Instrument tray with an air brake to make it stable and not shake when the dentist is working and the large-capacity instrument panel is convenient for storing medical supplies needed for treatment.
Dentist Stool A
Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting. It’s provides the dentist with good support for the haunch and waist.
Assistant Operating Control System
With 7 control buttons, it is convenient for assistant to use the common functions of dental chair, assist dentists to improve work efficiency.
Water Storage Bottle
1.5L large capacity water storage bottle, transparent material, water storage is obvious
Metal backrest
The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.
Foot Pad
The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
Cast aluminum box
The side box can be rotated 45 °, which can provide morespace for the deputy to operate.
Aluminum Cabinet
High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.
Cast aluminum lamp holder
Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).
Chair Frame
The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.
4mm High Quality Steel Is Cut By Laser Cutting Machine
All ABS Plastic By Injection Moulding
Import Medical Water & Air Tube
Import Member And Valve
Import Motor
Import Pressure Reducing Valve
Import Solenoid Valve
Power Supply With Protection System
Self-designed PCB System, Import Chip
Technical Parameters:
| Power Voltage | 220V-50HZ/60HZ |
| Motor Voltage | 24V |
| Air pressure | 0.5MPa-0.8MPa |
| Water Pressure | 0.2MPa-0.4MPa |
LED Light:
| Rated input Voltage | AC12V±10% |
| Maximum Power | 15VA |
| Light Source | 1 light-emitting diodes (LED) |
| Color Temperature | 5,000K ± 10% |
| Illuminance | Adjustable from ＜8,000 to ＞30,000 |
Configutation:
| 24V DC Motor |
| Down Mounted Instrument Tray |
| 3-Way Syringe(Assistant)Cold/Hot Water |
| Assistant Operating Control System |
| Water Heater System |
| Strong Suction Tube |
| Weak Suction Tube |
| Air Brake Instrument Tray |
| Emergency Switch (On-Off) |
| Auto Spittoon Flush And Cup Filler Control System |
| Detachable 90°Moveble Spitton |
| Control Box With Main Switch(Water/Electric/Air) |
| Reflective LED Operating Light(White/Yellow) |
| Dentist stool A |
| 45°Rotating Cabinet |
| Glass Spittoon |
| Synchronized |
| Third Generation Chair Frame Compensation System |
| Cast Aluminum Cabinet |
| Water One-way Valve(Anti-backflow Function) |
Product Introduction to Modern Dental Chair
Crafted as the pinnacle of dental care technology, the AY-215C1 electric dental chair redefines patient comfort and clinical efficiency. Designed meticulously to cater to the evolving needs of medical professionals and the comfort desires of patients, this chair is a seamless blend of cutting-edge technology and ergonomic finesse.
At its core, the AY-215C1 is a testament to innovation. It boasts an intuitive design that marries market demands with the exacting requirements of dental professionals. This chair prioritizes patient comfort by providing an expansive, luxurious seat that ensures a relaxed experience during dental procedures.
One of its standout features lies in its ergonomic prowess. The chair seamlessly adjusts, conforming to the body's contours, ensuring optimal support. Its automatic movement synchronized with cushion adjustments creates a natural elevation angle, enhancing both comfort and stability. This innovative design minimizes patient discomfort and enhances the efficiency of dental procedures.
Moreover, the AY-215C1 is more than just a dental chair; it's a technological marvel. With its streamlined design, it exudes sophistication while integrating seamlessly into any dental setting. The chair's intelligent features not only prioritize patient comfort but also provide the necessary support for dental practitioners, allowing them to focus on their expertise without compromise.
In essence, the AY-215C1 isn't just another dental chair—it's a commitment to providing a superior dental experience. From its thoughtful design tailored to meet professional needs to its emphasis on patient comfort, every aspect of this electric dental chair embodies excellence. With the AY-215C1, step into the future of dental care where comfort, technology, and precision converge seamlessly for both patients and practitioners.
Opitons
.jpg)
8 Eyes operating light (whiteyellow)
.jpg)
4 Eyes operating light (white)
.jpg)
lmplant operating light (white)
.jpg)
Reflected operating light (whiteyellow)
Dentist stool C
Dentist stool A
Luxury Top-mounted instrument tray
Top-mounted instrument tray
Luxury cast aluminum multifunctional pedal
Cast aluminum multifunctional pedal
Cast aluminum peda
Monitor holder
Curing Light
Curing Light
Scaler
Colors Available:
Standard: PU
