Kids Unit AY-215D2

Kids Unit AY-215D2

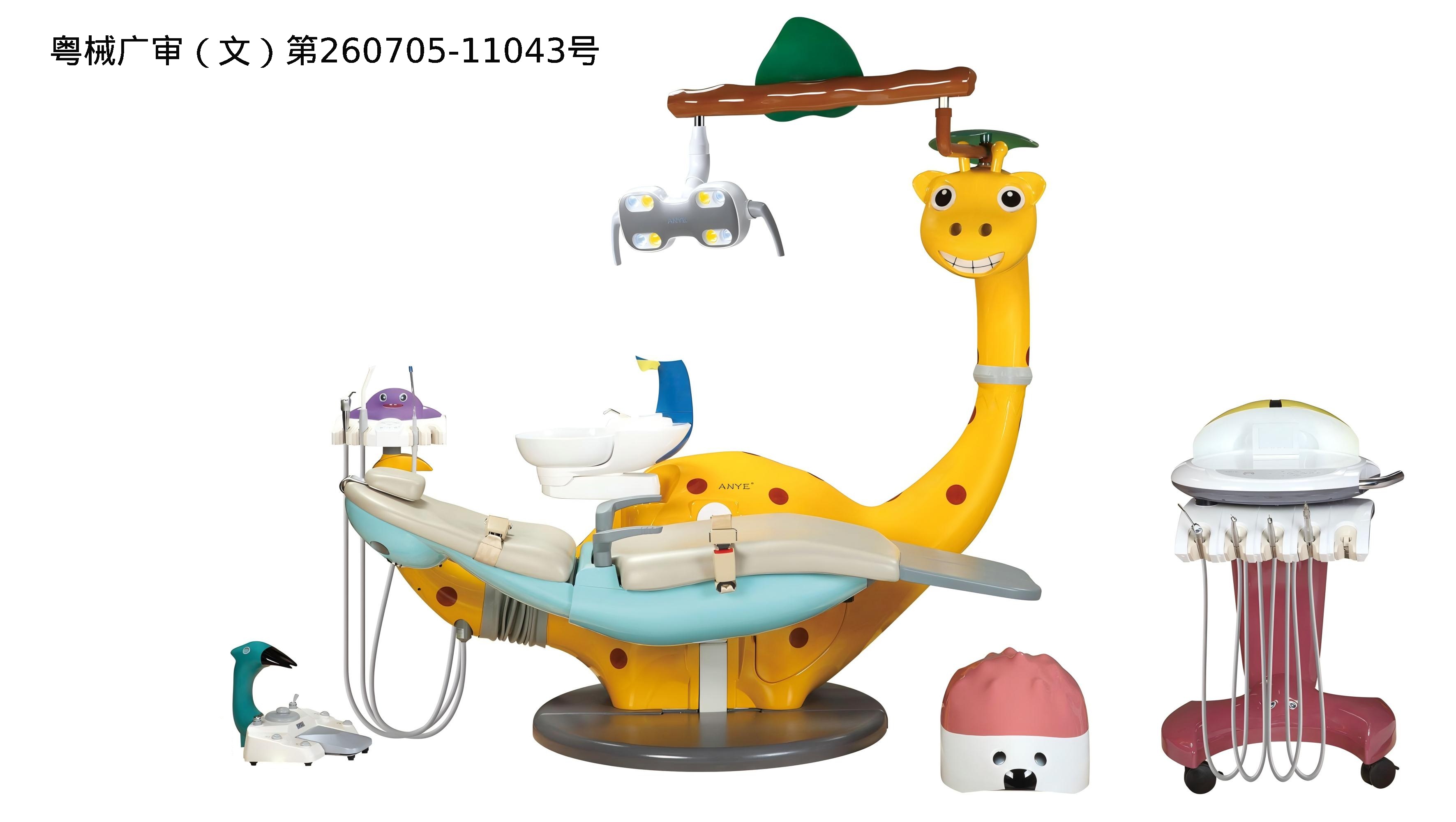

A full cartoon chair specially designed for children. The product is designed according to market demand to meet the clinical professional needs of dentist and provide a relaxing and enjoyable environment for children as the goal. It makes full use of ergonomic and high-strength precision technology to produced a high-end unit. The maximum weight of kids chair is 135KGS and the height is 1.6M.


D2-2

Introduction

A full cartoon chair specially designed for children.
The product is designed according to market demand to meet the clinical professional needs of dentist and provide a relaxing and enjoyable environment for children as the goal.
It makes full use of ergonomic and high-strength precision technology to produced a high-end unit.
The maximum weight of kids chair is 135KGS and the height is 1. 6M.

PRODUCT DETAILS

Modern Kids Chair
Modern Kids Chair


D23

Detachable Spittoon


The spitoon is made of new materials, drop-proof and can be put into sterilizer for disinfection. The peacock design gives children a relaxing and comfortable visual experience. It is detachable for easy cleaning, it can be rotated by 90°for patients to spit.



D24

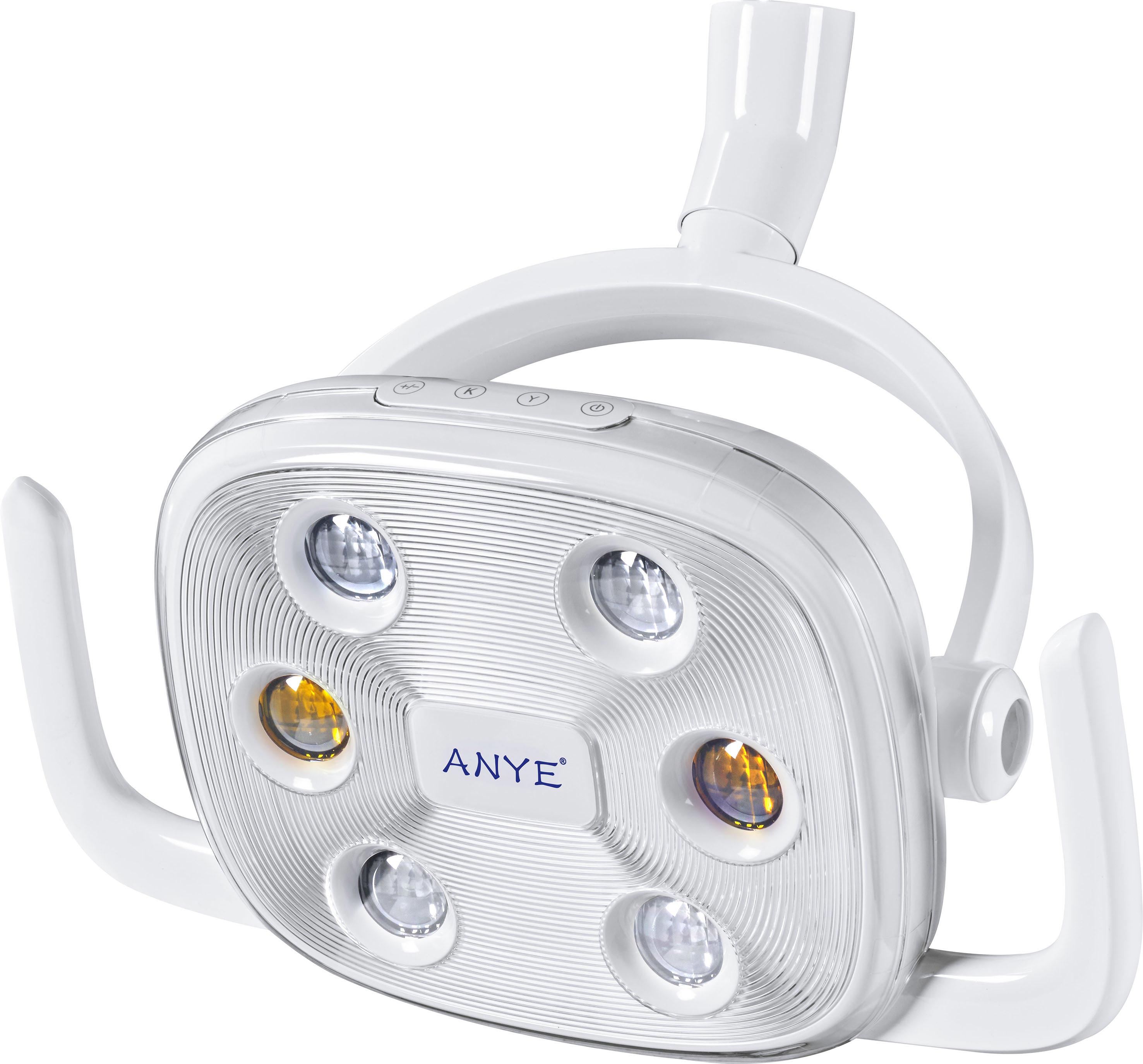

White and yellow light LED operating lamp


Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from  8,000 to 30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%

D25

Assistant operating instrument tray


The assistant operating tray with multifunction buttons, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.



D26

Removable Instrument Tray


The removable instrument tray with 360° silent universal wheels which is flexible to move and can meet the needs of dentists from all angles.


D27

Junction Box


Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. Its improve the stability and durability of the prower.
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.



D29

Control System with Memory Function


Electric dental chair control system with 18 control buttons, 9 memories, a button preset working position, which greatly improves the dentist's work efficiency.



D210

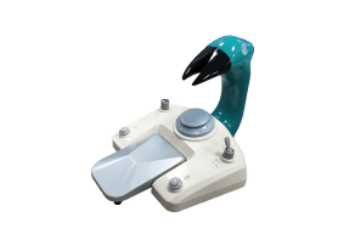

Multifunctional Foot Pedal


The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.



D211

Dentist Stool C


Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. Its provides the dentist with good support for the haunch and waist.



D212

Foot Pad


The foot pad is made of die-casting, its easy to clear. Patients do not need to take off their shoes for treatment.



D213

Emergency safety Switch


This bottom if the chair breaks down or in a medical accident, the water, air and electricity of whole unit will stop working.

D214

Water Transfer Switch


Water storage bottle is switched to supply water when the water transfer switch is pressed, and the water storage bottle gas switch is turned on at the same time.



D215

Safety Belt


Effectively prevent children from shaking.




140x140

Backrest Safety Lock


The backrest will automatically return and the seat will automatically rise when encounter resistance during the lying down process, it will be avoid obstacles, and provide more security.





Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding

import medical water & air tube

Import Medical Water & Air Tube


Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve


Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Technical Parameters:

Power Voltage 220V-50HZ/60HZ
Motor Voltage 24V
Air Pressure 0.5MPa-0.8MPa
Water Pressure 0.2MPa-0.4MPa



LED Light:


Rated input voltage AC 24V±10%
Maximum power 25VA
Light Source 4 white light-emitting diodes (LED)
and 4 yellow light-emitting diodes (LED)
Color Temperature 5,000K - 5,700K
Illuminance Adjustable from <8,000 to >30,000



Configutation:

24V Noiseless Motor
Water Heater System
Strong Suction And Weak Suction
Water Purification System
Air brake Tray
Detached Spittoon
Imported Electromagnetism Valve
Spittoon Flush And Cup Filler
Removable Main Tray With 9 Memories
Multifunctional Foot Padal
X-Ray Viewer
Syringe(Cold/Hot Water)
Led Light 8 Bulbs (White/Yellow Color)
Dentist stool C

Opitons


8 Eyes operating light (whiteyellow)

8 Eyes operating light (whiteyellow)

4 Eyes operating light (white)

4 Eyes operating light (white)

lmplant operating light (white)

lmplant operating light (white)

Reflected operating light (whiteyellow)

Reflected operating light (whiteyellow)


Dentist stool C

Dentist stool C

Dentist stool A

Dentist stool A

Luxury Top-mounted instrument tray

Luxury Top-mounted instrument tray

Top-mounted instrument tray

Top-mounted instrument tray


Multifunctional foot pedal

Luxury cast aluminum multifunctional pedal

Foot pedal

Cast aluminum multifunctional pedal

Monitor holder

Cast aluminum peda

Monitor holder



Curing Light

Foot pedal

Curing Light

Monitor holder

Scaler



Colors Available:

Standard: PU

Sky BlueSky Blue
Light BlueLight Blue
Dark BlueDark Blue
Light GrayLight Gray
GreenGreen
Green
YellowYellow
OrangeOrange
Light GrayRose Red
lvorylvory

Optional:  Leather


Eco-friendly leather EmeraldEmerald
Eco-friendly leather Orange RedOrange
Eco-friendly leather Chinese RedChinese Red
Eco-friendly leather Light GreenLight Green
Eco-friendly leather Bark BrownBark Brown
Eco-friendly leather Sapphire BlueSapphire Blue
Eco-friendly leather Dark GreyDark Grey
Eco-friendly leather Amber BrowAmber Brown
Eco-friendly leather Olive GreenOlive Green
Eco-friendly leather Rose RedRose Red
